Turnkey PCB Assembly for Medical Electronics
SugaMed provides full-turnkey PCB assembly for medical electronics, managing PCB fabrication, component sourcing, PCB assembly, inspection, and agreed testing from the same released PCB and BOM data.
You provide the PCB files, BOM, placement data, expected quantity, and applicable assembly or test requirements. Our team coordinates purchasing and manufacturing to deliver completed PCB assemblies without requiring you to separately manage PCB suppliers, component sourcing, and the assembly factory.
Turnkey projects are managed under SugaMed’s ISO 13485 quality management system, with purchasing, material control, assembly, inspection, and testing carried out according to the approved project requirements.
What Full-Turnkey PCB Assembly Means
Full-turnkey PCB assembly means that one manufacturing partner manages PCB sourcing, component procurement, material coordination, assembly, inspection, and applicable testing.
Instead of separately purchasing bare PCBs, ordering components, shipping materials to an assembly factory, and coordinating several production schedules, you provide the released PCB files, BOM, placement data, assembly requirements, and test requirements to SugaMed.
Our team then coordinates the PCB, components, materials, and PCBA production around the same approved project data.
This allows your engineering and purchasing teams to manage one PCB assembly project rather than several separate supply and manufacturing activities.
One Manufacturing Partner
Released PCB Files + BOM + Placement Data
PCB Sourcing
Component Procurement
PCB Assembly
What SugaMed Manages in a Turnkey PCB Assembly Project
A turnkey project starts before components reach the SMT line. PCB availability, BOM information, material purchasing, assembly requirements, and testing all need to be aligned before production can proceed.
Manufacturing Data Review
Before purchasing begins, our team reviews the available PCB data, BOM, placement information, assembly drawings, component package information, programming requirements where applicable, and agreed inspection or test requirements.
Missing or unclear information that may affect purchasing or assembly is identified before material commitment where possible.
PCB Fabrication Coordination
Bare PCBs are sourced according to the released PCB design and applicable fabrication requirements.
PCB revision, quantity, construction requirements, surface finish, and other fabrication information are coordinated with component availability and the planned assembly schedule.

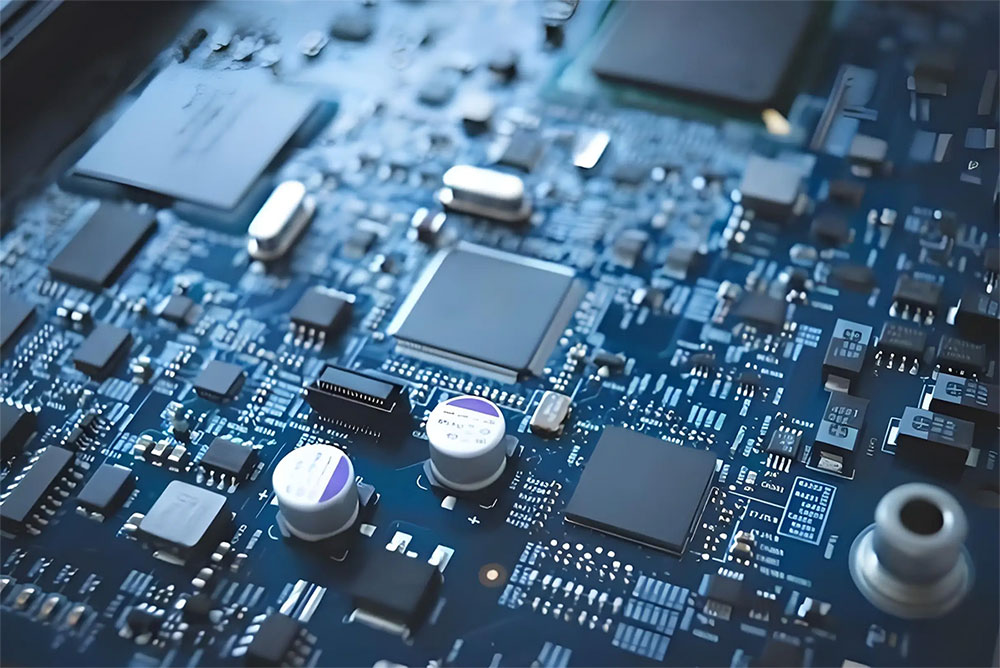

Component Sourcing
Components are purchased against the approved BOM.
The sourcing team reviews manufacturer part numbers, required quantities, component availability, lead times, and other supply or lifecycle concerns that may affect the build.
Components are sourced and managed through the SUGA supply chain according to the approved BOM.
Incoming Material Control
Incoming PCBs and components enter SUGA’s material-control process before production release.
Applicable incoming inspection, material identification, storage, and production loading are managed through the relevant quality and manufacturing systems.
PCB Assembly
Materials are released into the required SMT, THT, or mixed-technology assembly process according to the approved build configuration.
Flex and rigid-flex assemblies can also be supported where required by the project.
For more detailed placement and SMT process capabilities, see our SMT Assembly Services.
For assemblies containing BGA packages, see our BGA Assembly Services.
Inspection and Testing
Inspection and testing are defined according to the assembly and approved project requirements.
Depending on the project, this may include SPI, AOI, first article inspection, BGA X-ray inspection, ICT, functional testing, or other agreed inspection and test methods.
Programming can also be incorporated where required.

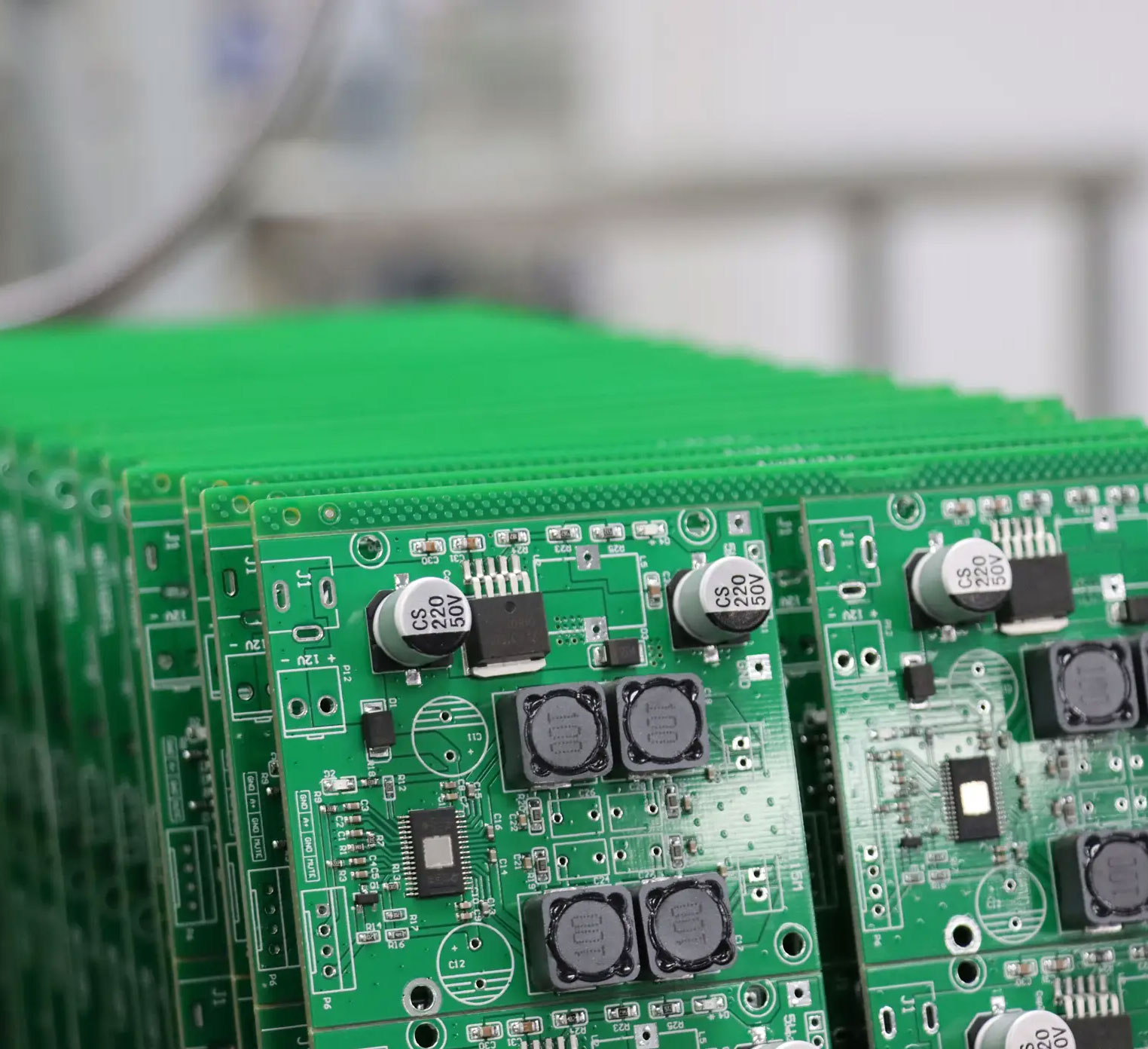

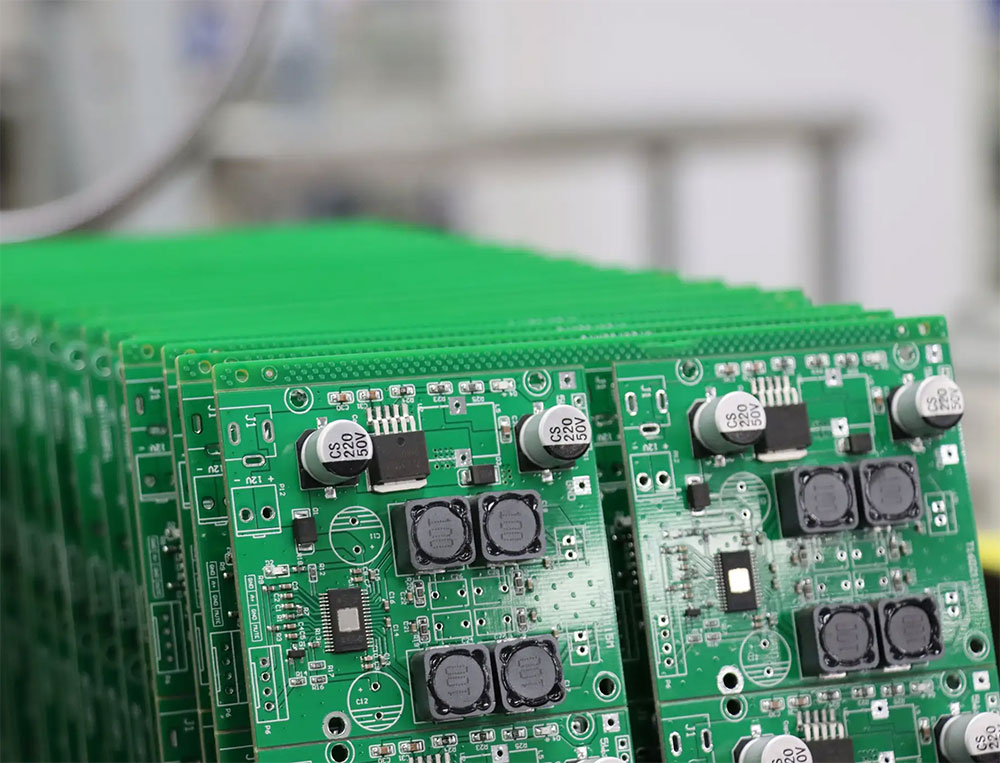

Completed PCB Assemblies
After the required assembly, inspection, and testing activities are complete, the finished PCB assemblies are prepared for delivery according to the agreed order requirements.

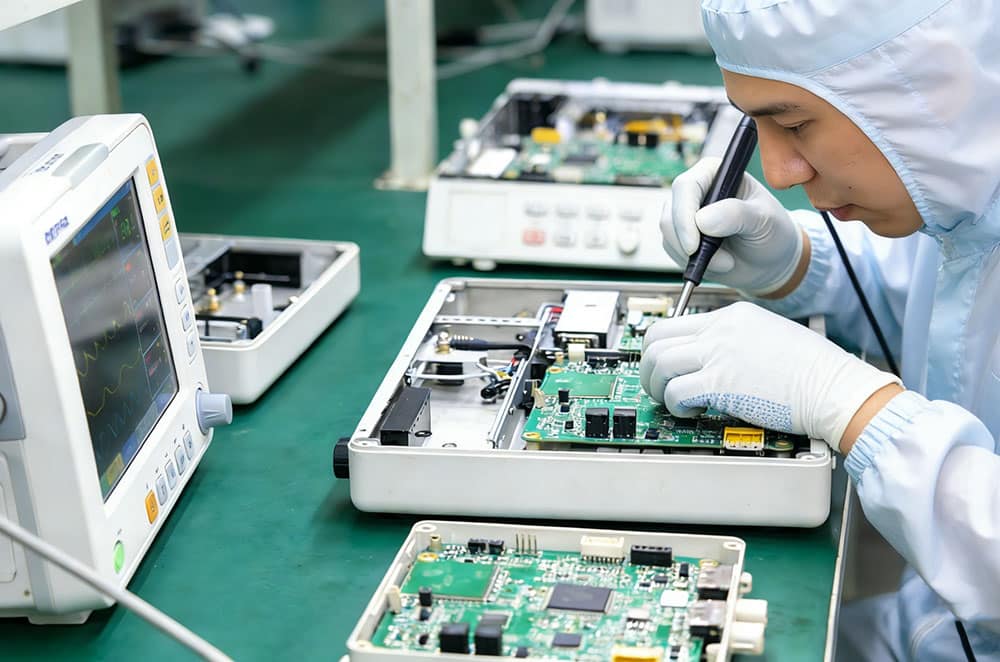

Projects requiring enclosure assembly, cable integration, module assembly, or further product integration can be evaluated separately under our Box Build Assembly service.
How PCB, Components and Assembly Are Coordinated
A turnkey build starts from the same released PCB files, BOM, placement data, and assembly requirements.
These files are used to coordinate:
This coordination matters because purchasing and assembly decisions affect each other.
For example, a long-lead component can affect the planned production date. A proposed component substitute may require BOM approval before purchasing. A PCB revision may also require updated placement or assembly data before the new build can be released.
Managing these activities within the same project reduces the need for the customer to separately reconcile PCB purchasing, component purchasing, and assembly information between different suppliers.
Component Sourcing and BOM Management
Component sourcing is a central part of SugaMed’s turnkey PCB assembly service.
Before purchasing, the BOM is reviewed for sourcing information and material issues that could affect the build.
BOM Review
The BOM is checked for information needed for purchasing and assembly, including manufacturer part numbers, quantities, package information, and component identification.
Missing or unclear information can be raised before purchasing begins.
Component Availability
Component availability, lead times, lifecycle concerns, and other sourcing risks can be reviewed during purchasing.
Identifying a constrained or long-lead component early helps avoid reaching the planned assembly date with an incomplete material set.
Controlled Component Substitutions
If the specified component cannot be sourced and an alternative is proposed, the substitute is not introduced automatically.
The proposed alternative is reviewed and submitted for customer approval before it replaces the released component in production.
Purchasing and Production Coordination
PCB availability, component availability, and the intended assembly schedule are coordinated as part of the same turnkey project.
This helps align material readiness with the planned production build rather than treating PCB purchasing, component purchasing, and assembly scheduling as separate activities.
SugaMed provides full-turnkey component sourcing and material management.
Customer-consigned components are not supported.
When Full-Turnkey PCB Assembly Makes Sense
Full-turnkey PCB assembly is suitable when your team wants one supplier to manage bare PCBs, component purchasing, and PCB assembly together.
It can be a good fit when:
You do not want to coordinate a PCB supplier, component suppliers, and an assembly factory separately.
Your BOM needs to be reviewed for component availability before purchasing.
PCB and component purchasing schedules need to be aligned with the planned assembly build.
Proposed component substitutions need to follow a review and approval process.
Your engineering or purchasing team prefers to release one set of manufacturing data rather than manage separate material shipments.
You need completed PCB assemblies manufactured from the approved PCB, BOM, placement data, and assembly requirements.
Need More Than a Completed PCBA?
Turnkey PCB assembly and box build assembly are related services, but they cover different stages of manufacturing.
Turnkey PCB assembly focuses on the board-level manufacturing process, including PCB fabrication coordination, component sourcing, PCB assembly, inspection, and agreed testing.
Box build assembly extends beyond the completed PCBA and may include enclosure assembly, cable or harness installation, module integration, and additional product-level assembly according to the project requirements.
If your project requires both completed PCB assemblies and further product integration, those additional requirements can be reviewed under our Box Build service.
Turnkey PCB Assembly FAQ
What is included in SugaMed's full-turnkey PCB assembly service?
SugaMed manages PCB fabrication coordination, component sourcing, material control, PCB assembly, inspection, and applicable electrical or functional testing according to the approved project requirements.
The exact scope is confirmed from the PCB files, BOM, placement data, assembly information, expected quantity, and test requirements provided for the project.
Does SugaMed support customer-supplied or consigned components?
No.
SugaMed operates as a full-turnkey PCB assembly supplier and does not support customer-consigned component assembly.
Components required for production are sourced and managed through the SUGA supply chain.
What files do you need for a turnkey PCB assembly quote?
A typical turnkey manufacturing package may include:
- Gerber or ODB++ data
- BOM with manufacturer part numbers
- Pick-and-place / CPL file
- Assembly drawing
- Applicable fabrication and assembly notes
- Programming files or requirements where applicable
- Inspection or test requirements where applicable
- Expected build quantity
If some information is not yet available, our engineering team can review the available files and identify what else is needed before the project moves forward.
How are component substitutions handled?
A specified component is not automatically replaced simply because it is unavailable.
If an alternative is required, the proposed substitute is reviewed and submitted for customer approval before it is released for production.
What happens if a component in my BOM is unavailable?
Component availability is reviewed during sourcing.
If a required part cannot be obtained within the project schedule, the sourcing and engineering teams can review the situation and, where appropriate, identify a possible alternative for customer evaluation.
No substitute is introduced into production without approval.
Can you support inspection and functional testing as part of turnkey assembly?
Yes, where required by the project.
Inspection and testing can include applicable SPI, AOI, first article inspection, BGA X-ray inspection, ICT, functional testing, or customer-specific test activities.
The required methods and test coverage are defined according to the assembly and approved project documentation.
Does turnkey PCB assembly include box build assembly?
Not automatically.
Turnkey PCB assembly normally covers the board-level manufacturing process through completed PCB assemblies.
If the project also requires enclosure integration, cables, modules, or further product assembly, those requirements can be evaluated separately under SugaMed’s Box Build Assembly service.
Start Your Turnkey PCB Assembly Project
Send us your available PCB files, BOM, placement data, expected quantity, and assembly or test requirements.
Our team can review the PCB data, BOM, component availability, purchasing requirements, and assembly scope before materials are purchased and production begins.
What to Send
- PCB files
- BOM
- Placement data
- Expected quantity
- Assembly or test requirements
